AIRCRAFT BRIEF

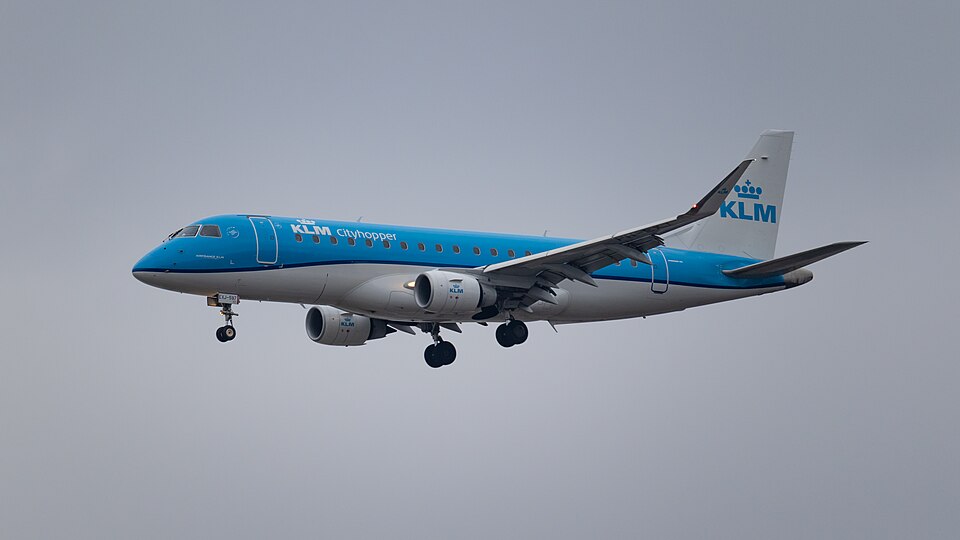

The Embraer E175 is a narrow-body regional jet and the most popular member of the first-generation E-Jet family. Launched in 2002, the E175 entered service with launch customer Air Canada in 2005. Seating up to 88 passengers, it is powered by twin General Electric CF34-8E5 engines and features a sophisticated fly-by-wire flight control system. The E175 dominates North American regional aviation and is the backbone of many US regional carrier fleets operating under scope clause agreements.

RANGE VISUALIZER

Startup Walkthrough

SPECIFICATIONS

manufacturerEmbraer
first Flight2003
roleRegional narrow-body jet
crew2 pilots + cabin crew
engines2x GE CF34-8E5 (14,200 lbf each)
max Speed870 km/h (Mach 0.82)
range3,982 km (2,150 nmi)
ceiling41,000 ft
weight37,500 kg (MTOW)
PHS 1 — Pre-Flight Planning8 steps
01Weather Briefing (METAR / TAF)NOTE: Check weather at departure, destination, and alternate. Review SIGMETs and PIREPs.REVIEWED
02NOTAMsNOTE: Check for runway closures, approach procedure changes, and airspace NOTAMs.REVIEWED
03Fuel RequiredNOTE: Typical burn ~1,700-2,200 kg/hr. Plan for trip + alternate + 45-minute final reserve.CALCULATED
04Weight & BalanceCAUTION: MTOW 37,500 kg. MLW 32,800 kg. Max Zero Fuel Weight 31,100 kg. Verify CG within envelope.WITHIN LIMITS
05Takeoff PerformanceNOTE: Calculate V1, Vr, V2 for actual conditions. Enter into FMS.CALCULATED
06OFP / Flight PlanNOTE: Verify SID, route, STAR, and alternate.REVIEWED & LOADED
07ATIS / D-ATISOBTAINED
08GSX - Fuel TruckNOTE: GSX menu: Refuel Aircraft. Verify fuel load matches OFP.REFUEL COMPLETE
PHS 2 — Cockpit Preparation11 steps
01Battery MasterWARNING: Do not power other systems before batteries are ON.ON
02External Power (GPU)NOTE: Connect GPU to preserve APU fuel.CONNECTED / ON
03Emergency LightsARMED
04ADIRS / IRSNOTE: Allow 10-minute alignment. Verify lat/long on MCDU.ON - ALIGNING
05MCDU / FMS ProgrammingNOTE: Enter origin/dest, route, SID, cruise altitude, V-speeds, and fuel data.COMPLETE
06RadiosNOTE: Pre-select ATIS, ground, and tower frequencies.SET
07AltimetersSET TO QNH
08Fuel QuantityVERIFIED
09Circuit BreakersCHECK IN
10Fire Warning TestTESTED - OK
11Oxygen MasksTESTED - PRESSURE OK
PHS 3 — APU Start5 steps
01APU MasterON
02APU StartNOTE: APU should reach AVAIL within 60 seconds.INITIATE
03APU AVAIL LightILLUMINATED
04APU BleedNOTE: Select APU bleed ON to power packs and pressurize system.ON
05GPUDISCONNECTED (IF APU AVAILABLE)
PHS 4 — Before Start8 steps
01Parking BrakeSET
02DoorsCLOSED & LOCKED
03Seat Belts / No Smoking SignsON
04Fuel Control LeversCUTOFF
05HydraulicsNOTE: Verify all hydraulic system pressures normal.CHECKED
06Anti-Ice / De-IceAS REQUIRED
07TransponderSTBY
08Start ClearanceOBTAINED
PHS 5 — Engine Start10 steps
01Engine 2 - StarterNOTE: Start engine 2 first. Starter engages when N2 begins to rise.ENGAGE
02N2 > 15%NOTE: Move fuel control lever 2 to RUN when N2 reaches 15%.FUEL ON
03Engine 2 EGT / N1 / N2WARNING: Max start EGT 950 deg C. Abort start if limit exceeded or no light-off in 10 seconds.RISING - MONITOR
04Engine 2 - IDLENOTE: N1 ~22%, N2 ~68%, EGT ~350-400 deg C at idle.STABLE
05Engine 1 - StarterENGAGE
06N2 > 15%FUEL ON
07Engine 1 - IDLESTABLE
08APU BleedNOTE: Turn off APU bleed once both engines running.OFF
09Generators 1 & 2ON
10APUOFF
PHS 6 — After Start / Pre-Taxi8 steps
01Flight ControlsCHECKED - FREE & CORRECT
02FlapsNOTE: Typically Flaps 5 for normal takeoff.SET FOR TAKEOFF
03TrimSET FOR TAKEOFF
04SpoilersARMED
05PressurisationNOTE: Confirm destination field elevation entered.SET
06HydraulicsNORMAL
07LightsTAXI ON
08Taxi ClearanceOBTAINED
PHS 7 — Taxi4 steps
01Parking BrakeRELEASE
02Brakes TestNOTE: Apply brakes after aircraft begins to move.CHECKED
03Taxi SpeedMAX 20 KTS STRAIGHT / 10 KTS TURNS
04TransponderTA/RA
PHS 8 — Before Takeoff8 steps
01FlapsCONFIRMED TAKEOFF SETTING
02TrimCONFIRMED TAKEOFF SETTING
03SpoilersARMED
04BrakesNORMAL PRESSURE
05V-SpeedsNOTE: Typical at MTOW: V1 137 kts, Vr 140 kts, V2 143 kts (weight dependent).CONFIRMED
06Cabin CrewREADY
07LightsLANDING + STROBE ON
08Takeoff ClearanceRECEIVED
PHS 9 — Takeoff5 steps
01Thrust LeversNOTE: Advance smoothly to TOGA. Both engines should spool symmetrically.ADVANCE TO TOGA
02Engine InstrumentsCHECKED - NORMAL
03At V1NOTE: Abort only if engine failure, fire, or structural failure.COMMIT TO TAKEOFF
04At VrNOTE: Apply steady back pressure, target 12-15 deg pitch attitude.ROTATE SMOOTHLY
05Positive RateGEAR UP
PHS 10 — Climb7 steps
01At Flap Retract SpeedNOTE: Retract flaps to 0 at flap retraction speed per QRH.FLAPS UP
02Climb PowerNOTE: Reduce thrust to climb setting at acceleration altitude.CLB DETENT
03AutopilotNOTE: Engage at or above 200 ft AGL, once positive climb established.ENGAGED
04Climb Speed250 KIAS / BELOW FL100 - THEN 280-290 KIAS
05Landing LightsOFF ABOVE 10,000 FT
06Transition AltitudeALTIMETERS SET STD (1013 hPa)
07Anti-IceAS REQUIRED
PHS 11 — Cruise5 steps
01Cruise LevelNOTE: E175 typically cruises FL350-FL390. Max alt FL410.ESTABLISHED
02Cruise SpeedMACH 0.78-0.80 (TYPICAL)
03Fuel CheckNOTE: Compare actual vs planned fuel at each waypoint.MATCH FLIGHT PLAN
04PressurizationNOTE: Cabin altitude should remain below 8,000 ft.CHECKED
05FMS ProgressMONITORED
PHS 12 — Descent6 steps
01Destination ATISOBTAINED
02Approach BriefingCOMPLETE
03FMS Approach / STARSELECTED
04AltimetersSET QNH AT TRANSITION LEVEL
05Descent SpeedM 0.78 / 290 KIAS / 250 KIAS BELOW FL100
06Landing PerformanceNOTE: Calculate Vref and landing distance for actual weight and conditions.COMPUTED
PHS 13 — Approach9 steps
01Seat Belt SignON
02Anti-IceAS REQUIRED
03Flaps5 BELOW 230 KIAS - THEN SCHEDULE
04Landing GearNOTE: Three greens confirmed.DOWN (BELOW 250 KIAS)
05FlapsNOTE: Select flaps to landing setting per QRH.FULL (LANDING SETTING)
06SpoilersARMED
07VappNOTE: Maintain Vapp on final. Stabilized by 1,000 ft in IMC.~135-145 KIAS (WEIGHT DEPENDENT)
08Landing LightsON
09Approach ChecklistCOMPLETE
PHS 14 — Landing6 steps
01Final ApproachNOTE: Stabilized by 500 ft in VMC. Go-around if not stable.STABILIZED
02FlareNOTE: Initiate flare at ~30 ft AGL.SMOOTH - REDUCE THRUST TO IDLE
03Thrust LeversIDLE AT TOUCHDOWN
04SpoilersAUTO DEPLOY ON TOUCHDOWN
05Brakes / AutobrakeAPPLY AS REQUIRED
06SpeedREDUCE TO TAXI SPEED
PHS 15 — After Landing7 steps
01FlapsRETRACT
02SpoilersRETRACT
03Landing LightsOFF
04Strobe LightsOFF
05Anti-IceOFF
06TransponderSTBY
07Taxi ClearanceOBTAINED
PHS 16 — Shutdown10 steps
01Parking BrakeSET
02APUSTART (FOR GROUND POWER)
03Engine 1 - Fuel CutoffCUTOFF
04Engine 2 - Fuel CutoffCUTOFF
05EnginesOFF - N2 TO ZERO
06Seat Belt SignOFF
07Fuel PumpsOFF
08AvionicsOFF
09APUOFF (AFTER GROUND POWER CONNECTED)
10Battery MasterOFF
