MSFS 2024 · Airliner

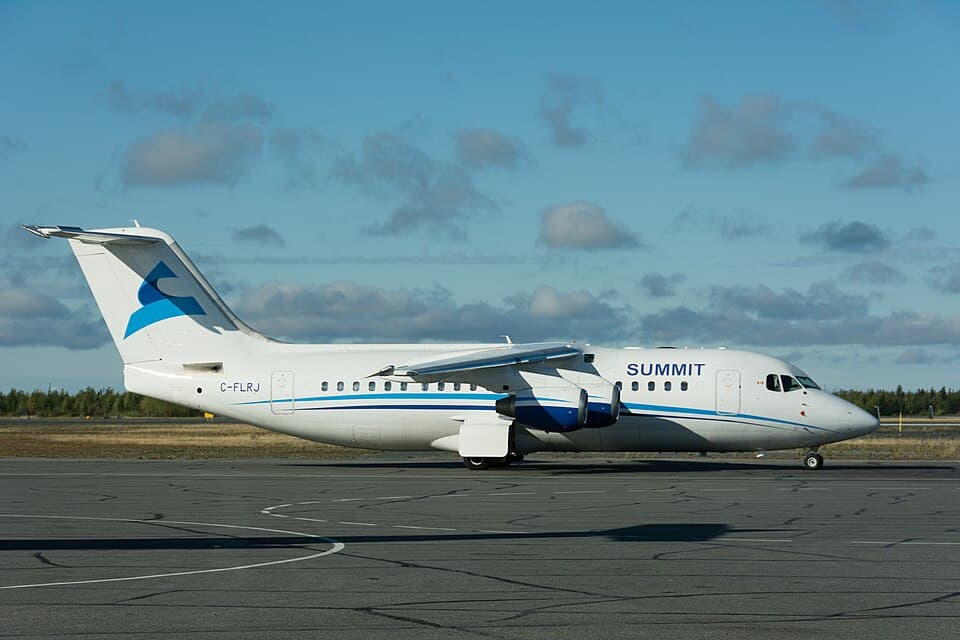

Avro RJ85 (Just Flight) Startup Checklist
FLIGHT2.17.1Checklist
Avro RJ85 (Just Flight)MSFS 2024 · Startup Checklist · 211 steps · 17 phases
PHS 1 - Pre-Flight Planning10 steps
| 01 | Weather (METAR / TAF / SIGMET)REVIEWEDNOTE: Maximum demonstrated crosswind is 35 kt for take-off and landing. Maximum tailwind is either 10 kt or 15 kt. For an ILS or autoland the limits are 25 kt headwind, 15 kt crosswind, 10 kt tailwind. | |
| 02 | NOTAMsREVIEWED | |
| 03 | Flight PlanPREPAREDNOTE: The EFB and the GNLU-910A FMS accept the route, SID, STAR and approach. A separate FMS Operations Manual covers the FMS in depth. | |
| 04 | Fuel PlanningBLOCK FUEL CALCULATEDNOTE: Fuel capacity 3,096 US gal / 11,728 litres. Reserves are entered on the FMS PERF INIT page in tonnes. | |
| 05 | LoadsheetZFW, TOW AND CG SETCAUTION: RJ85 maximum take-off weight 43,998 kg (97,000 lb), maximum landing weight 38,555 kg (85,000 lb), maximum zero fuel weight 35,833 kg (79,000 lb). Forward baggage limit 1,520 kg, aft baggage limit 1,506 kg. | |
| 06 | Airfield LimitsCHECKEDCAUTION: Maximum airfield pressure altitude for take-off and landing is between 8,000 ft and 9,300 ft; minimum for take-off is -1,000 ft. Maximum for autoland is 6,000 ft. Maximum ambient temperature is +50 degC below 2,525 ft and ISA +40 above. | |
| 07 | Take-off PerformanceV1, VR, V2, VFTO AND FLAP CALCULATEDNOTE: Preferred take-off flap is 18 degrees for a better climb gradient, better noise footprint and correct windshear configuration. Contaminated runways use 30 degrees. | |
| 08 | Deceleration PlanBRIEFEDWARNING: Normal landing performance assumes the airbrakes are out. If the airbrakes are not deployed, landing distance is increased. | |
| 09 | Brake CoolingCHECKEDCAUTION: After a landing or rejected take-off the minimum cooling period with all brake fans operative is 15 minutes, reducible to no less than five minutes only under the manual's stated conditions. | |
| 10 | VariantCONFIRMEDNOTE: This product covers the RJ70, RJ85 and RJ100. Weights, VMO, flap limit speeds and manoeuvring speeds all differ between them. |
PHS 2 - Cockpit Preparation39 steps
| 01 | Circuit BreakersCHECKED IN | |
| 02 | Weather RadarSTBY - TILT +15 UP | |
| 03 | TransponderSTBY | |
| 04 | Airbrake and FlapsIN / UP | |
| 05 | NAV LightsONNOTE: Setting NAV lights on now illuminates them as soon as power is applied, indicating to the ground crew that crew are on board. | |
| 06 | BATT 1 and BATT 2ONCAUTION: Confirm the battery ammeter shows a discharge and rotate the DC selector to BATT 1 and BATT 2 in turn to check a minimum of 23 volts. | |
| 07 | Brake Selector and Parking BrakeYELLOW / PARK | |
| 08 | Yaw Damper, Autopilot and Avionics Masters 1 and 2ONNOTE: The FGC SELECT switch is alternated daily: 1 on odd days, 2 on even days. | |
| 09 | Ground IgnitionA OR BNOTE: A on odd days, B on even days. | |
| 10 | Anti-Skid and Lift Spoilers (YEL and GRN)ON | |
| 11 | BUS-TIE SwitchesAUTO | |
| 12 | STBY INV and STBY GENARM | |
| 13 | GEN 1 and GEN 4OFF/RESET | |
| 14 | APU GENON | |
| 15 | Fire HandlesALL INNOTE: Set the engine fire loops by day of the week: LOOP A on odd days, LOOP B on even days. | |
| 16 | Engine and APU Fire and Extinguisher TestsCOMPLETENOTE: Full test procedures for all ground tests are in the MSFS Checklist window in the simulator. | |
| 17 | L INNER Fuel PumpON | |
| 18 | APU MasterSTARTCAUTION: Maximum APU TGT during starts is 870 degC, or 974 degC for no more than 10 seconds. Maximum TGT while running is 746 degC. Starting envelope maximum altitude is 20,000 ft.NOTE: Monitor APU RPM and TGT during the start. PWR AVAILABLE illuminates once RPM reaches 97 percent plus four seconds. | |
| 19 | APU AIR and One PACKONNOTE: Only one pack is required on the ground to extend component life. PACK 1 on odd days, PACK 2 on even days. | |
| 20 | MWS TestPERFORMEDNOTE: Push the MWS CTRL switch fully in, confirm all annunciators illuminate and the chimes sound, cancel, then return the switch to its middle position. | |
| 21 | Zero Fuel Weight and FuelENTERED ON THE EFB - BOARDING AND REFUELLING STARTED | |
| 22 | IRS SwitchesALNCAUTION: Set the IRS position from the FMS POS INIT page. Do not move the aircraft during alignment. | |
| 23 | FMSIDENT, POS INIT, ROUTE, DEP/ARR AND PERF INIT COMPLETENOTE: Enter ZFW, reserves, cruise altitude, cruise wind and transition altitude on PERF INIT, then EXEC. | |
| 24 | EFIS MastersON - BRIGHTNESS ADJUSTED | |
| 25 | IRS SwitchesNAV | |
| 26 | Cabin Emergency LightsARM | |
| 27 | Ground TestsCOMPLETENOTE: Smoke, stall, fire loops, speed, anti-skid, rear bay temperature, flap and horn tests via the GRND TEST section of the overhead. | |
| 28 | DC PUMPON - CHECK YELLOW BRAKE PRESSURE RISE, THEN OFF | |
| 29 | AC PUMP and PTUON - CHECK YELLOW AND GREEN PRESSURE, THEN OFFNOTE: Confirm all hydraulic annunciator lights are extinguished before switching the PTU and AC PUMP back off. | |
| 30 | Engine Anti-Ice (four switches)ON | |
| 31 | Flight Deck Emergency LightingARM | |
| 32 | FLT ANNUNS TestPERFORMED | |
| 33 | Landing AltitudeSET ON THE PRESSURIZATION PANELNOTE: If neither APU air nor engine air will be available for landing, set LDG ALT to 500 ft above the landing field. | |
| 34 | CVR TestPERFORMEDNOTE: The CVR LED flashes yellow/green for 10 seconds, then steady green for 10 seconds, then extinguishes. | |
| 35 | Standby Attitude IndicatorFAST ERECTED TO ZERO PITCH AND ROLL | |
| 36 | EGPWS and TCAS TestsPERFORMED | |
| 37 | FDR Ground CheckPERFORMED - FDR FAIL LIGHT EXTINGUISHED | |
| 38 | Oxygen Main Valve and Pilot RegulatorsOPEN - POSITIVE SUPPLY, REGULATORS TESTED | |
| 39 | Panels and PedestalCHECKED |
PHS 3 - Crew at Station12 steps
| 01 | Pins and CoversON BOARD | |
| 02 | Aircraft LogCHECKED | |
| 03 | Park BrakeSETCAUTION: If YELLOW brake pressure is below 2,500 PSI, run the DC PUMP or AC PUMP until it has risen sufficiently. | |
| 04 | Fuel Quantity and Flow MetersCHECKEDCAUTION: Fuel asymmetry within the wings must not exceed 680 kg (1,500 lb). | |
| 05 | AltimetersCHECKED | |
| 06 | PressurisationCHECKED | |
| 07 | IRSCHECKED | |
| 08 | FMSCHECKED | |
| 09 | Flight GuidanceCHECKED | |
| 10 | T/O DataCHECKEDNOTE: Set the TRP: TOGA MAX for a fully rated take-off, or TOGA REDU with an assumed temperature for a derate. V1 goes in the V1 window, VR in VCROSS and VFTO in VDOT; V2 is set in the MCP IAS/MACH window. | |
| 11 | TrimsSETNOTE: Elevator trim is set from the CG% SMC table; rudder and aileron trims centred. The trim setting is the same for all take-off flap settings. | |
| 12 | T/O BriefingPERFORMED |
PHS 4 - Before Engine Start12 steps
| 01 | Hydraulic PanelALL SWITCHES OFF | |
| 02 | ICE DETECTON | |
| 03 | Fasten BeltsON | |
| 04 | CABIN EMERG and NO SMKGARM | |
| 05 | MWS GND OP SwitchMIDDLE (RESET) POSITION | |
| 06 | Packs and APU AirOFF | |
| 07 | Beacon / StrobesON | |
| 08 | Fuel PanelSET - ALL FOUR PUMPS ON | |
| 09 | Doors / WindowsCLOSED / REMOVEDNOTE: The flight deck door is locked with the FLT. DECK DOOR switch; the NOT LOCKED annunciator extinguishes when locked. | |
| 10 | SlidesARMED | |
| 11 | TCASTA/RA | |
| 12 | Engine Anti-IceALL FOUR ON |
PHS 5 - Engine Start10 steps
| 01 | START PWR SwitchNORM | |
| 02 | START MASTER SwitchON | |
| 03 | Start SelectorENGINE 4NOTE: The engines are started in the order 4, 3, 2, 1. | |
| 04 | Engine Start SwitchSTART FOR ONE SECOND, THEN RELEASENOTE: ENG IGN A (B) ON and STARTER OPERATING illuminate. | |
| 05 | N1, EGT and N2MONITOR | |
| 06 | Thrust LeverFUEL OFF TO FUEL ON AT 10 PERCENT N2WARNING: Maximum EGT during start and relight is 649 degC, or 713 degC for no more than 10 seconds. | |
| 07 | Fuel Flow and Engine IndicationsCONFIRM RISING | |
| 08 | Engine 4STABILISED AT IDLENOTE: With FADEC on, ground idle N2 must be between 49 and 54 percent. Minimum oil pressure at ground idle is 25 PSI and maximum oil temperature is 133 degC. | |
| 09 | Engines 3, 2 and 1REPEAT START SEQUENCE | |
| 10 | Start Selector and START MASTEROFF |
PHS 6 - After Engine Start10 steps
| 01 | Generators (GEN 1 and GEN 4)ONLINE | |
| 02 | Brake FansAUTO | |
| 03 | HydraulicsON / AUTONOTE: Switch on the ENG 2 and 3 hydraulic pumps and confirm 3,000 PSI in each system, then set the AC PUMP to AUTO and the PTU to ON. | |
| 04 | Ice ProtectionAS REQUIREDNOTE: Switch on all five heater switches. Turn engine anti-ice off if no icing conditions are expected. | |
| 05 | Air ConditioningAS REQUIREDNOTE: APU AIR back ON and both PACK switches ON for taxi and take-off. | |
| 06 | Auto-ThrottleARMEDNOTE: A white A/T legend is displayed on the PFD. The A/T switch is set to ARM when lining up. | |
| 07 | FlapsSELECTEDNOTE: Take-off flap 18 degrees preferred; 30 degrees for a contaminated runway. RJ85 flap limits: 18 deg 215 kt, 24 deg 180 kt, 30 deg 170 kt, 33 deg 150 kt. | |
| 08 | Flight ControlsCHECKEDNOTE: Confirm the controls are unlocked and elevator, ailerons and rudder all have full and unrestricted movement. | |
| 09 | Chocks and DoorsREMOVED / CLOSED | |
| 10 | Clear SignalRECEIVED |
PHS 7 - Taxi Check9 steps
| 01 | ATC ClearanceVERIFIED | |
| 02 | Taxi LightsON | |
| 03 | Thrust and T/O DataRECHECKEDNOTE: Confirm the correct N1 SET is displayed on the PED and the V-speeds are set on the EFIS, MCP and TRP. | |
| 04 | Flaps and SpeedsCHECKEDNOTE: Confirm flaps have extended to the take-off position. | |
| 05 | T/O BriefingCOMPLETED | |
| 06 | ConfigCHECKEDNOTE: Press and hold the CONFIG CHECK button. If the config horn is not audible the aircraft is correctly configured for take-off. | |
| 07 | MWSCHECKEDNOTE: All MWS captions extinguished except appropriate green captions. | |
| 08 | CabinSECUREDNOTE: Press CABIN CALL and await verbal confirmation from the cabin crew. | |
| 09 | Landing and Strobe LightsON |
PHS 8 - Take-off14 steps
| 01 | Thrust Levers45-55 PERCENT N1 - ENGINES STABLENOTE: Set take-off power before releasing the brakes unless field length and obstacle clearance permit a rolling start. | |
| 02 | TOGA ButtonsPRESSED - A/T SETS TARGET N1CAUTION: Normal take-off limits: N1 97.0 percent (100 for 10 seconds), N2 98.8 percent (100 for 10 seconds), EGT 632 degC (685 for 15 seconds), oil pressure 87-107 PSI, oil temperature 30 degC minimum and 133 degC maximum. | |
| 03 | BrakesRELEASE - START ELAPSED TIME CLOCK | |
| 04 | Directional ControlNOSEWHEEL STEERING, THEN RUDDER AT 50-60 KTNOTE: Keep the handwheel at or close to neutral fore and aft during the roll. | |
| 05 | 80 KnotsTHRUST FREEZE MODE ENTERED | |
| 06 | V1GO CALL - COMMITTED TO FLY | |
| 07 | VRROTATE SMOOTHLYNOTE: A smooth continuous rotation that establishes, in about four seconds, the attitude required to achieve V2 + 10 knots. | |
| 08 | Positive RateGEAR UPCAUTION: Landing gear operating and extended speed is 205 KIAS. The gear must not be operated above 20,000 ft. | |
| 09 | Initial Climb SpeedV2 + 10 KNOTS OR ABOVECAUTION: Pitch attitude should not be allowed to exceed 20 degrees. If it is reached, allow the speed to rise above the target. | |
| 10 | 350 ftTHRUST FREEZE MODE LEFT - VSEL MAY BE CHANGEDNOTE: Do not engage the autopilot in TO mode below 350 ft AGL, and do not deselect TO mode until obstacle clearance is assured. | |
| 11 | 400 ft and Clear of ObstaclesACCELERATE THROUGH THE FLAP RETRACTION SCHEDULENOTE: From flap 18 the only step is 0 degrees at VFTO. From flap 24 or 30, select 18 at V2 + 10 and 0 at VFTO. Noise abatement: hold V2 + 10 with take-off flap to the thrust reduction point, normally 800 ft above airfield level. | |
| 12 | Acceleration Speed210 KNOTSNOTE: RJ85 and RJ100 accelerate to 210 knots; the RJ70 uses 200 knots. | |
| 13 | Flaps0 AT VFTO | |
| 14 | Climb PowerSET - TRP CLIMB NORMNOTE: Then set the MCP speed selector to the climb speed, normally 250 knots, and press LVL CHG. |
PHS 9 - System Check9 steps
| 01 | ENG AIRON | |
| 02 | APU AIROFF | |
| 03 | PacksON - PRESSURISING | |
| 04 | APUSTOPCAUTION: APU AIR must be selected OFF above 15,000 ft and the APU generator must not be used above 25,000 ft. Maximum APU operating altitude is 31,000 ft. | |
| 05 | LightsOFF | |
| 06 | Flaps0 DEGREESCAUTION: The flaps must not be operated above 19,000 ft. | |
| 07 | GearUP | |
| 08 | TRPCLIMB | |
| 09 | AltimetersX-CHECKEDNOTE: Set STD on the altimeters at the transition altitude. |
PHS 10 - Climb en Route9 steps
| 01 | PTUOFF - AC PUMP AUTO | |
| 02 | Fasten BeltsAS REQUIRED | |
| 03 | Climb SpeedSETNOTE: Long range climb 250 kt / 0.62 M, increased to 0.64 M if take-off weight is above 41,000 kg. High speed climb 280 kt / 0.66 M. Steep gradient 210 kt. Above FL310 the climb speed is 0.66 M for all techniques. | |
| 04 | Speed RestrictionsOBSERVEDCAUTION: Bird impact speed limitation is 250 KIAS below 8,000 ft. | |
| 05 | Thrust RatingCLIMB NORMNOTE: Set CLIMB MAX when a climb rate of 1,000 ft/min can no longer be achieved at long range climb speed with CLIMB NORM. | |
| 06 | IAS / MACH ChangeoverMONITORNOTE: In VS or LVL CHG the MCP changes automatically from IAS to MACH climbing through FL245. | |
| 07 | Anti-IceAS REQUIREDCAUTION: In icing conditions or with ICE DETECTED lit, select ENG ANT ICE and OUTER WING/TAIL ANT ICE ON and maintain a minimum of 67 percent N2. When clear, select INNER WING DE-ICE ON for one minute. | |
| 08 | PressurisationMONITORCAUTION: Maximum differential pressure is 7.5 PSI up to 27,000 ft and 7.6 PSI above 27,000 ft. Maximum operating altitude with a fully automatic system is 35,000 ft. | |
| 09 | Engine InstrumentsMONITOR ALL FOURCAUTION: Maximum continuous limits: N1 97.0 percent, N2 96.9 percent, EGT 613 degC, oil temperature 133 degC, oil pressure 85 PSI minimum and 107 PSI maximum. |
PHS 11 - Cruise8 steps
| 01 | Cruise AltitudeLEVEL OFF - ALT HLD ENGAGES | |
| 02 | Cruise SpeedSETNOTE: High speed cruise is VMO/MMO; intermediate is VMO/0.67 M; long range is 235 kt / 0.68 M for the RJ70 and RJ85 and 240 kt / 0.68 M for the RJ100. | |
| 03 | Cruise ThrustCLIMB NORMCAUTION: Cruise thrust should normally be limited to CLIMB NORM. CLIMB MAX may be required at unfavourable weight, altitude and temperature combinations. | |
| 04 | VMO / MMORESPECTEDCAUTION: VMO is 300 KIAS (RJ100: 305 KIAS) and MMO is M0.72 or M0.73. When using high speed cruise it is often better to sit a few knots below VMO/MMO to avoid nuisance overspeed warnings. | |
| 05 | Cabin Altitude and Differential PressureCONFIRM STABILISED WITHIN LIMITS | |
| 06 | FuelMONITORCAUTION: Maximum fuel temperature delivered to the engine is +55 degC, minimum +3 degC. Wing fuel asymmetry must not exceed 680 kg (1,500 lb). | |
| 07 | VNAV CRZ PageDISPLAYEDNOTE: The VNAV CRZ page gives time and distance to top of descent. | |
| 08 | Turbulence ProcedureREVIEWED IF REQUIREDCAUTION: In severe turbulence stabilise at approximately 245 knots or 0.6 M, whichever is lower, select CONT IGN A and B ON, do not exceed 20 degrees bank, keep the yaw damper engaged and do not engage ALT, IAS or MACH modes. |
PHS 12 - Preparation for Approach6 steps
| 01 | FMSCHECKED | |
| 02 | Actual FuelCHECKED | |
| 03 | Landing DataSET / CHECKEDNOTE: Set VREF in the TRP VCROSS window and VFTO in the VDOT window. Minimum flap-up speed VER is VFTO + 10. | |
| 04 | Land Flap / Steep ApproachAS REQUIREDCAUTION: Normal landing flap is 33 degrees. Flap 33 is mandatory for automatic landings and for Category 2 and Category 3 approaches. Steep approaches require a steep approach monitor system, an angle between 4.5 and 6 degrees, flap 33 and an operative airbrake. | |
| 05 | PressurisationSETNOTE: Confirm the landing altitude, referenced to the left altimeter sub-scale setting for landing. | |
| 06 | BriefingCOMPLETEDCAUTION: A minimum of three engines must be operating at the start of an autopilot-coupled ILS or non-precision approach. The maximum certificated approach angle is 6 degrees for the RJ70 and RJ85 and 5.5 degrees for the RJ100. |
PHS 13 - Descent10 steps
| 01 | Descent AltitudeSET ON THE MCP BEFORE INITIATING | |
| 02 | Descent ModeVS OR LVL CHGNOTE: Vertical speed is generally the best mode because with the autothrottle engaged the FGS holds both vertical speed and airspeed. | |
| 03 | PTUON | |
| 04 | Descent SpeedSETNOTE: High speed descent is MMO / 290 kt; long range is 0.60 IMN / 250 kt. A rate of 2,000 ft/min is normally sufficient, typically 1,000 ft/min below 18,000 ft. | |
| 05 | AirbrakeAS REQUIREDCAUTION: Change airbrake position smoothly and slowly when the autopilot is engaged, and avoid changing it while the FGS is in the altitude acquire phase. | |
| 06 | 12,000 ftSET 250 KT IN THE IAS/MACH WINDOWNOTE: Set 250 kt at around 12,000 ft so the speed is reduced to 250 kt by 10,000 ft. | |
| 07 | AltimetersSET TO DESTINATION QNH AT TRANSITION LEVEL | |
| 08 | Fasten Belts and Landing LightsON | |
| 09 | APUSTART AT 5,000 FT OR BELOWCAUTION: Do not switch on APU AIR until the APU has been running for at least two minutes, five if practicable. Avoid starting the APU at high altitude and speed to minimise starting TGT. | |
| 10 | Air Supply for LandingAPU AIR ON, ENGINE AIR OFF, PACKS ON |
PHS 14 - Approach and Landing19 steps
| 01 | Navigation AidsTUNED AND IDENTIFIEDNOTE: For an ILS or VOR approach, FORMAT must be ARC, ROSE or MAP and CRS must be selected to V/L. | |
| 02 | Initial Approach Speed210 KNOTSNOTE: The initial approach can be flown clean between 250 kt and VFTO + 10 kt; 210 kt is a comfortable speed. Minimum manoeuvring speed with flap 0 is VFTO + 15. | |
| 03 | VOR LOC ModeARMED | |
| 04 | CabinSECURED FOR LANDING | |
| 05 | Flaps 18SET AT VFTO + 10CAUTION: Minimum manoeuvring speed at flap 18 is VREF33 + 30 or VREF24 + 20. RJ85 flap 18 limit speed is 215 kt, maximum for holding 175 kt. | |
| 06 | Final Approach TrackAIM FOR 160 KNOTS WITH FLAP 18NOTE: Or minimum manoeuvring speed if higher, approaching the final descent point. | |
| 07 | Landing GearDOWN - 3 GREENCAUTION: Gear operating and extended speed is 205 KIAS. Avoid selecting the gear close to the limit; noise, vibration and buffet are more intense at higher speeds. | |
| 08 | Flaps 24SET - REDUCE TO VREF33 + 20CAUTION: RJ85 flap 24 limit speed is 180 kt. Minimum manoeuvring speed at flap 24 is VREF33 + 20 or VREF24 + 10. | |
| 09 | APP ModeENGAGED - GLIDESLOPE CAPTURE | |
| 10 | Flaps 33SET FOR LANDINGCAUTION: RJ85 flap 33 limit speed is 150 kt. Flap is normally selected directly from 24 to 33; the intermediate 30 degree setting assists speed reduction and is useful on a three-engined approach. | |
| 11 | Approach SpeedVAPP - VREF PLUS 5 KNOTSNOTE: The basic threshold speed is VREF and may be increased by up to 14 kt for gusts and icing. Minimum manoeuvring speed at flap 30/33 is VREF33 + 10. | |
| 12 | Landing ChecksCOMPLETE BY 500 FTNOTE: Gear down and three greens, brakes YELLOW, flaps indicating 33 degrees, airframe anti-ice and de-ice OFF. Nose-wheel steering is checked and centred as the last item, left until 500 ft if practicable. | |
| 13 | Stabilised ApproachBY 1,000 FT IMC / 500 FT VMCWARNING: Criteria are: on the correct flight path, in the landing configuration, only small changes required, vertical speed no greater than 1,000 ft/min, appropriate thrust, all checklists complete, and sustained speed VAPP -5 to +10 kt. If not stabilised, go around. | |
| 14 | AirbrakeOUTCAUTION: For Category 2, Category 3 and automatic landings the airbrakes must be out by 500 ft. On all other approaches they may be left in until below 200 ft; selecting them at 100 ft generally gives the correct threshold speed reduction. | |
| 15 | AutopilotAS REQUIREDCAUTION: The autopilot must not remain engaged below 160 ft AGL if both radio altimeters are inoperative, and may remain engaged to 50 ft AGL only if the CAT 2 status annunciator is lit. For an automatic landing it must be engaged before 1,000 ft AGL and remain engaged. | |
| 16 | FlareREDUCE THRUST TO FLIGHT IDLEWARNING: Do not prolong the flare. Touchdown should be about 1,000 ft past the threshold, at about 7 kt below the threshold speed. A high attitude combined with a high sink rate could cause a tail strike in the RJ100. | |
| 17 | Main Wheels DownGROUND IDLE | |
| 18 | Nose Wheel DownSELECT LIFT SPLRNOTE: The spoilers should deploy automatically; a manual selection to LIFT SPLR is made as a back-up. Counter the nose-down trim change with elevator. | |
| 19 | BrakingBALANCED AND PROPORTIONATE TO RUNWAY REMAININGWARNING: Do not move the column significantly forward of neutral after nose-wheel touchdown; this can cause wheelbarrowing. Rearward column with the spoilers deployed improves deceleration. |
PHS 15 - After Landing8 steps
| 01 | Gust Lock / AirbrakeSET / IN | |
| 02 | RadarOFFNOTE: The tutorial sets the radar to STBY with tilt +15 UP after clearing the runway. | |
| 03 | APUAS REQUIRED | |
| 04 | Flaps0 DEGREES | |
| 05 | Auto-ThrottleOFF | |
| 06 | Lift SpoilersRETRACTED | |
| 07 | Taxi and Strobe LightsTAXI ON / STROBE OFF | |
| 08 | TransponderSTBY |
PHS 16 - Parking14 steps
| 01 | Park BrakeSET | |
| 02 | SlidesDISARMED | |
| 03 | XPDR / TCASSTBY | |
| 04 | HydraulicsOFF | |
| 05 | GeneratorsOFF/RESET | |
| 06 | Air ConditioningAS REQUIREDNOTE: Confirm the aircraft is depressurised: cabin altitude matching field elevation with zero differential pressure and zero cabin rate. | |
| 07 | MWS GRND OP SwitchPULLED FULLY OUTNOTE: This silences non-critical MWP alarms that would sound as systems are shut down. | |
| 08 | Engine ShutdownPERFORMEDNOTE: Move each thrust lever in turn to the FUEL OFF position. | |
| 09 | Fasten BeltsOFF | |
| 10 | External LightsOFF | |
| 11 | Brake FansAS REQUIRED | |
| 12 | Fuel PumpsAS REQUIREDNOTE: Leave the L INNER pump running for the APU. | |
| 13 | IgnitionOFF | |
| 14 | Ice ProtectionENGINE ANTI-ICE ON / HEATERS OFFNOTE: The tutorial switches off the engine anti-ice, all five heater switches and the ice detection switch at the stand. |
PHS 17 - Leaving Aircraft12 steps
| 01 | Emergency LightsOFFNOTE: Confirm the EMERG LTS NOT ARMED caption illuminates on the MWP. | |
| 02 | Elevator TrimPOS 1 | |
| 03 | AvionicsOFFNOTE: Switch off the avionics, autopilot and yaw damper master switches from right to left. Select both IRS switches and both EFIS masters OFF first. | |
| 04 | Fuel PumpOFF | |
| 05 | Air ConditioningOFFNOTE: Both PACK switches, the flight deck and cabin fans and the APU AIR switch off. Confirm APU VLV NOT SHUT extinguishes within five seconds. | |
| 06 | Lights and NoticesOFF | |
| 07 | APUOFFNOTE: Shut the APU down by pressing and holding the APU OVSPD test button until RPM and TGT decrease. | |
| 08 | Anti-Skid and Lift SpoilersOFF | |
| 09 | Brake FansOFF ONCE BRAKES ARE COOLCAUTION: Check the brake temperature gauge on the centre console. The minimum cooling period before another take-off with all brake fans operative is 15 minutes. | |
| 10 | Galley SwitchSHED | |
| 11 | ElectricsOFFNOTE: BATT 1 and BATT 2 off last. | |
| 12 | EFB Storage BoxLOCKED |
