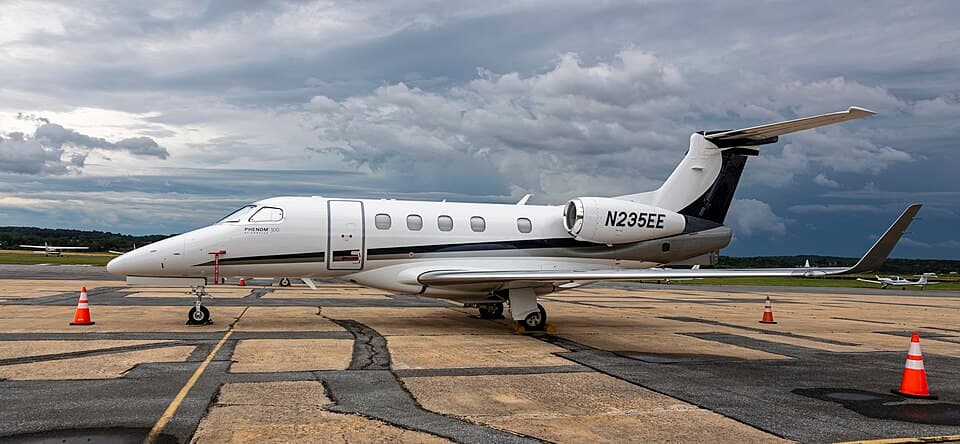

Embraer Phenom 300E (FSReborn) Quick Reference

V-SPEEDS

SpeedValueDescription
Vmo320 KIASMax operating speed
MmoM0.80Max cruise 464 KTAS
V1 / Vr / V2Per FMS performanceWeight, altitude and temperature dependent
Vfe (FLAP 1)180 KIAS8 degrees, takeoff
Vfe (FLAP 2)180 KIASTakeoff / approach
Vfe (FLAP 3)170 KIAS26 degrees, takeoff and landing
Vlo / Vle250 KIASGear operate / extended
VrefPer landing weightFinal approach

POWER SETTINGS

PhaseSetting
TakeoffTO detent - FADEC sets N1
ClimbCLB detent
CruiseCRZ - up to M0.80
DescentIdle or as required
ApproachAs required for the profile
Go-AroundTO/GA - flaps 2, gear up with positive rate

FLAP SCHEDULE

SettingMax SpeedUse
FLAP 0AnyCruise / Climb
FLAP 1 (8 deg)≤ 180 KIASTakeoff
FLAP 2≤ 180 KIASTakeoff / Approach
FLAP 3 (26 deg)≤ 170 KIASLanding

ENGINE LIMITS

ParameterValue
EnginePW535E1, 3,478 lbf each
ControlFADEC - schedules fuel and ignition
Max Altitude45,000 ft
StartMonitor ITT, abort on hot or hung start
FuelJet A / Jet A-1

KEY NUMBERS

ParameterValue
Fuel Capacity (usable)~5,350 lbs
Range2,010 nmi
MTOW18,551 lbs
Service Ceiling45,000 ft
Takeoff Distance~3,200 ft
CertificationSingle-pilot certified
AvionicsGarmin G3000 based flight deck
Stabilised Approach Gate1,000 ft IMC / 500 ft VMC
