Diamond DA40 NG (G1000 NXi) Emergency Procedures

Immediate Action Procedures

Tap a procedure to open its steps. Search covers step text, not just titles.

6 procedures

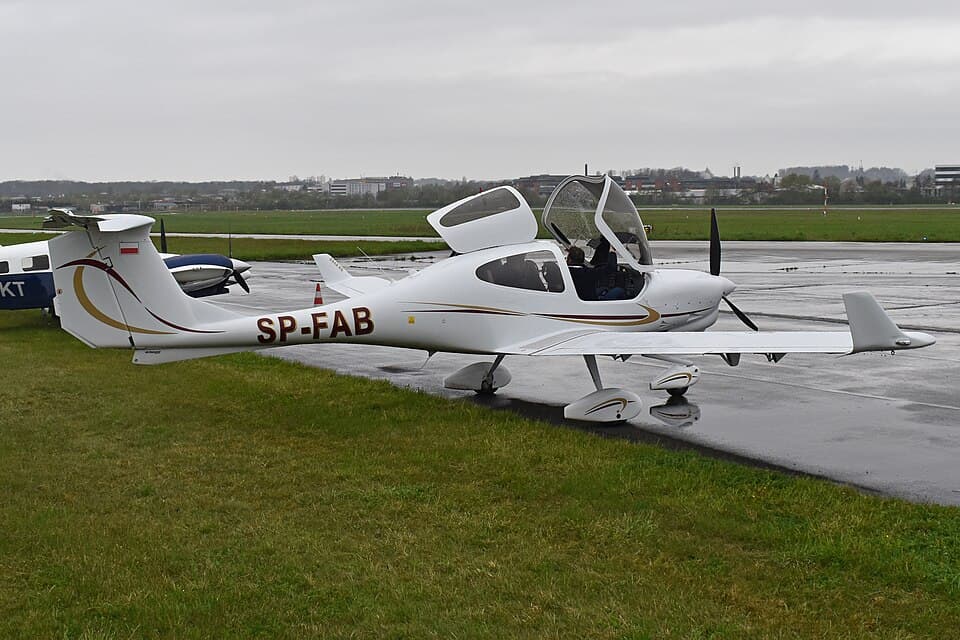

Alan Wilson / Wikimedia CommonsCC BY-SA 4.0

General AviationModern

AIRCRAFT BRIEF

The DA40 NG is the Jet A-1 branch of Diamond's four-seat Diamond Star, certified by EASA in April 2010 and now a fixture of ab-initio flight schools worldwide. In place of the Lycoming of the earlier DA40 it carries the Austro Engine AE300, a 168 hp common-rail turbo-diesel with FADEC dual-channel ECUs and a single power lever, which burns around 5.6 US gal/h of jet fuel at 65% and removes mixture, propeller and carburettor handling from the cockpit workload. The composite airframe, long glider-like wing and 1:9.7 glide ratio make it one of the most efficient trainers in its class, and the type's accident record is among the best in general aviation.

Startup Walkthrough

SPECIFICATIONS

manufacturer: Diamond Aircraft Industries
first Flight: 2010 (EASA certification)
role: Four-seat single-engine trainer and tourer
crew: 1 pilot + 3 passengers
engines: 1x Austro Engine AE300 (E4-A) turbo-diesel (168 hp / 123.5 kW)
max Speed: 287 km/h (155 kts TAS at 16,000 ft)
range: 1,741 km (940 nmi at 60% with long range tanks)
ceiling: 16,400 ft
weight: 1,280 kg (2,822 lbs MTOW)

Sources: DA 40 NG Airplane Flight Manual, Doc. # 6.01.15-E, Rev. 3, Checklist DA40 NG - NXI, Edition 1.2 NXi (Diamond Flight Training), DA40 NG Facts and Specifications (Diamond Aircraft), Diamond DA40 Diamond Star - Wikipedia

FLIGHT2.19.0Checklist

Diamond DA40 NG (G1000 NXi)MSFS 2024 · Emergency Procedures · 6procedures · 48 steps

Engine Failure - In Flight5 steps

	01	Airspeed88 KIAS
	02	FlapsUP
	03	Depending on remaining altitude, consider a windmill restart or an engine-off emergency landing
	04	Max restart altitude - 16,400 ft PA immediate, 10,000 ft PA within 2 minutes
	05	Do not consider a starter assisted restart if the propeller has stopped

Emergency Landing - Engine Off11 steps

	01	Gliding Speed88 KIAS
	02	ATCINFORM
	03	Adjustable BackrestsUPRIGHT
	04	Engine MasterOFF
	05	Fuel Transfer PumpOFF
	06	Fuel PumpsOFF
	07	Fuel ValveOFF
	08	Avionic MasterOFF
	09	Safety HarnessTIGHT
	10	On final: FlapsT/O or LDG (Vref 76 KIAS flaps LDG at 1,216 kg)
	11	Electric Master SwitchOFF

Engine Fire - In Flight7 steps

	01	Cabin HeatOFF
	02	CanopyUNLATCH AS NECESSARY
	03	Select an emergency landing area
	04	When certain to reach the landing area: Fuel ValveOFF
	05	Power LeverMAX
	06	Emergency WindowsOPEN AS NECESSARY
	07	Carry out the engine-off emergency landing

Fire / Smoke - On Ground10 steps

	01	Power LeverIDLE
	02	Cabin HeatOFF
	03	BrakesAPPLY, AIRPLANE TO STOP
	04	Fuel ValveOFF
	05	Fuel Transfer PumpOFF
	06	Engine MasterOFF
	07	Fuel PumpsOFF
	08	Electric MasterOFF
	09	After standstill and when the engine has stopped: CanopyOPEN
	10	EVACUATE

Electric Fire / Smoke - In Flight8 steps

	01	Emergency SwitchON
	02	Avionic MasterOFF
	03	Electric MasterOFF
	04	Cabin HeatOFF
	05	Emergency WindowOPEN AS NECESSARY
	06	CanopyUNLATCH AS NECESSARY
	07	Land immediately
	08	Consider the engine-off emergency landing

Total Electric Failure7 steps

	01	Circuit BreakersCHECK ALL IN
	02	Essential BusON
	03	If no success: Emergency SwitchON
	04	Flood LightON IF NECESSARY
	05	Power - SET according to power lever position and engine noise
	06	FlapsVERIFY POSITION
	07	Land at the nearest suitable airfield
