MSFS 2024 · Airliner

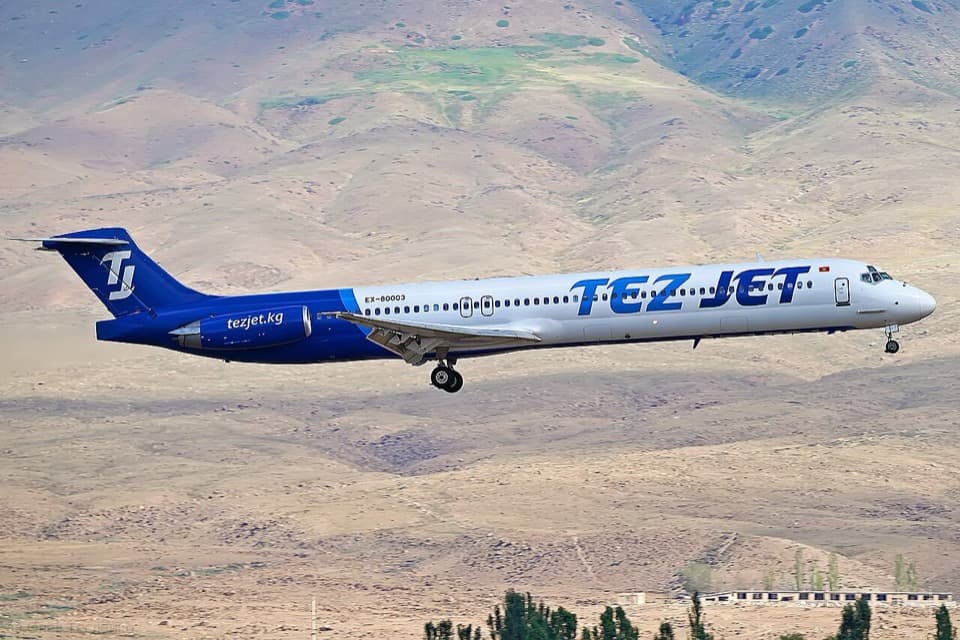

McDonnell Douglas MD-82 Quick Reference
V-SPEEDS
| Speed | Value | Description |
|---|---|---|
| VMO | 340 KCAS | FAA TCDS A6WE Rev 30, Section XIII Model DC-9-82 |
| MMO | Mach 0.84 | Above 27,240 ft |
| VLO (gear retraction) | 250 KCAS / Mach 0.70 | Landing gear operating speed |
| VLO (gear extension) | 300 KCAS / Mach 0.70 | Landing gear operating speed |
| VLE (gear extended) | 300 KCAS / Mach 0.70 | Landing gear extended speed |
| Landing light extension | 350 KCAS / Mach 0.84 | Placard speed |
| Emergency Descent | Mach 0.80-0.82 / 320-340 KIAS | Ameristar MD83 Emergency Checklist |
| Optimum Glide (80,000 lb) | 190 KIAS | Loss of all engines, clean configuration |
| Optimum Glide (100,000 lb) | 210 KIAS | Loss of all engines, clean configuration |
| Optimum Glide (120,000 lb) | 230 KIAS | Loss of all engines, clean configuration |
| Optimum Glide (140,000 lb) | 250 KIAS | Loss of all engines, clean configuration |
| Optimum Glide (160,000 lb) | 270 KIAS | Loss of all engines, clean configuration |
| Cockpit Smoke Removal (unpressurized) | reduce to 220 KIAS, then 165 KIAS with flaps/slats 15 | Cockpit windows must not be opened above 165 KIAS |
POWER SETTINGS
| Phase | Setting |
|---|---|
| Takeoff (autothrottle) | TO or TO FLEX on the TRP; autothrottle advances to the EPR limit, clamp mode locks the levers at 60 KIAS |
| Max takeoff rating | 20,850 lb thrust, available via ARTS actuation or manual throttle movement |
| Normal takeoff rating | 20,000 lb thrust, the rating to be set with ARTS operative |
| Reverse thrust (slippery runway) | 1.3 EPR maximum on slippery portions except in an emergency |
| Reverse thrust (rudder authority) | rudder provides no control at about 1.6 EPR reverse |
FLAP SCHEDULE
| Setting | Max Speed | Use |
|---|---|---|
| Flaps 0.1 to 13 deg | 280 KCAS / M0.57 | Includes the 11 deg takeoff detent |
| Flaps 13.1 to 20 deg | 240 KCAS / M0.57 | Includes the 15 deg takeoff detent |
| Flaps 20.1 to 25 deg | 220 KCAS / M0.57 | Approach |
| Flaps 25.1 to 30 deg | 200 KCAS / M0.57 | Includes the 28 deg landing detent |
| Flaps 31 to 40 deg | 195 KCAS / M0.57 | Includes the 40 deg full landing detent |
| Slats extended, takeoff (17.8 deg) | 280 KCAS / M0.57 | Takeoff |
| Slats extended, landing (21 deg) | 240 KCAS / M0.57 | Landing |
| Autoslat extension | 280 KCAS / M0.57 | Automatic slat extension |
ENGINE LIMITS
| Parameter | Value |
|---|---|
| 20,850 lb (5 min, flat rated to 84 degF) | |
| 20,000 lb (5 min, flat rated to 77 degF) | |
| 20,850 lb (10 min) | |
| 630 degC for 2 min, 625 degC for 5 min (10 min engine inoperative) | |
| 595 degC for 2 min, 590 degC for 5 min | |
| 580 degC | |
| 475 degC (500 degC when AFM Appendix 11 is used) | |
| 625 degC | |
| 135 degC continuous, 165 degC transient (15 min limit) | |
| 40 to 55 psi | |
| JT8D-217C/219 minimum N1 vs EPR and OAT table; e.g. 1.95 EPR needs 82.9 pct N1 at -20 degC, 87.9 pct at +10 degC, 92.5 pct at +40 degC | |
| crosscheck for EPR error due to a plugged Pt2 probe only, not for setting takeoff thrust; actual N1 during takeoff will normally be higher than the tabulated minimum |
KEY NUMBERS
| Parameter | Value |
|---|---|
| Maximum operating altitude | 37,000 ft |
| Max taxi and ramp weight | 150,000 lb |
| Max weight at start of takeoff | 149,500 lb |
| Max landing weight | 130,000 lb |
| Max zero fuel weight | 122,000 lb |
| Weight above zero fuel weight | must be usable fuel; no fuel jettison system is installed |
| Minimum in-flight weight | 79,000 lb |
| Tyre rating | 26 ply rating main gear tires required for all ramp weights over 141,000 lb |
| Engines | 2 x Pratt and Whitney JT8D-209, -217, -217A, -217C or -219 |
| Minimum crew | pilot and copilot |
| Sensor heating threshold | heat is supplied to pitot tubes, static ports, AOA transducers and the RAT probe only when OAT is below 6 degC |
| ART trigger | Automatic Reserve Thrust boosts the higher-N1 engine when an N1 difference of more than 30 percent is detected |
| ART ready condition | actuator in AUTO and slats extended to MID or EXT |
| Autothrottle takeoff engage condition | flap lever anywhere other than UP/RET and aircraft on the ground for more than 20 seconds |
| Autothrottle clamp mode | 60 KIAS |
| Autobrakes | optional system; operates only if the spoiler handle is in the armed position |
| Cargo fire diversion limit | must land within 78 minutes after activation of bottle 1 |
| Cargo fire second bottle | discharges automatically 5 minutes after release of the PUSH DSCH switch |
| APU fire second agent | discharge if the APU FIRE warning remains on after 30 seconds |
| Evacuation flap setting | 28 deg |
